Continuous testing is on the road to DevOps

Summary

Introduction

CI and CD

Here we present basic notions of Continuous Integration and Continuous Delivery.

CI aims to do the following:

• Detect whenever a part of a product has been modified
• (Re)build and (re)assemble a product from its component
• Install that assembly in environments where it can be exercised or used
• Monitor these steps and report on the success/failures to the right stakeholders

It is often implemented as a loop or a graph that will launch multiple specialized tools and get their reports back, analyze them and present the summary information into a dashboard. Some of the known tools are Jenkins, Hudson, Bamboo and TeamCity.

CD aims to do the following:

• Detect whenever a product is ready
• Identify and prepare the target environments
• Install (or ship) the product
• Communicate to the right stakeholders, including the users
• Trigger the post install processes (marketing, support, maintenance, monitoring)

In most organizations, most of it is embedded into the CI loop.

From the time you modify a part of your product to the time you put in production or ship it to consumers, there is a set of verifications and validations to need to happen. You need to answer some questions:

• Is your product still functioning as expected?
• Is it still safe to be used?
• Is the new feature of real value for the users?
• Are we prepared to support it?
• Are we good with our marketing campaigns?

Release Pipeline

So, another useful notion that became more prevalent is the one of release pipeline.

Said it rapidly, it is the process that a product will undergo each time you need release to your users and customers. Defining a release pipeline is just as for any process:

• Define the stages
• Determine the conditions to move from one stage to another
• Identify the steps in each stage
• Set the conditions (pre and post) and outcomes you expect from the steps
• And so on

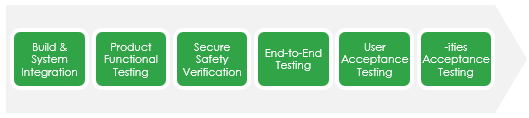

Here we provide a usual stage pattern but one should not take this as a recommended best practice:

• Build and integrate within system (build & System integration)
• Test functions (Product Quality Tests)
• Check it is safe and secure to use (Security/Safety verification)
• Test integration with surrounding environments (End-to-End testing)
• Ensure users get real value out of it (User Acceptance Testing)
• As needed, verify it is robust, scalable...

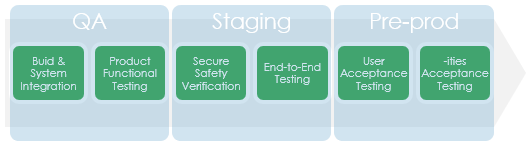

Note that the release pipeline does not dictate the set of test environments. System Integration and Product Functional tests can be done on a QA environment, while Security/safety, End to End and User Acceptance tests can be done on a staging environment, and '-ities' tests would be done on a pre-production.

So What About CT?

So, a release pipeline realizes 4 types of tasks:

• Setting up and cleaning environments when needed
• Installing products
• Verifying and validating
• Taking decisions or helping to make those between stages

In the software-driven industry, the most time-consuming set of tasks are (well...'should be') Verifying and Validating.

At each stage, you need to do specific tests to ensure your new or modified product is delivering on its quality attributes and expected values.

Each time you wish to deliver a new version of the product you must make sure it improves or at list maintain the same level of perceived quality and safety as the prior version while enabling new functionalities or enhancing existing ones.

This is what Continuous Testing brings to the game:

• Relentlessly testing and measuring quality levels
• Doing it as rapidly and effortlessly as possible
• Providing decision makers with the right information for managing the release pipeline
• Automating decision whenever possible

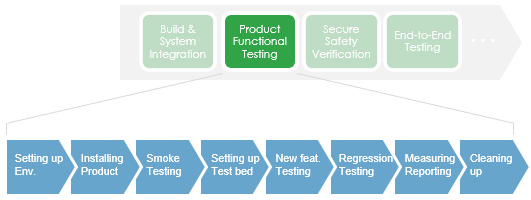

If we look at an example for the Functional Testing stage, we could see the following steps.


Note that the Setting up Env. and Cleaning up can be extremely time consuming and costly depending on the type of product you are addressing (a simple software is not as complex as an automobile for example...).

Every step is a Test

Any step (incl. setting up an environment), when it doesn't require too much manual interventions, should be automated and the result should be checked as for any test.

For example, if you are relying on Virtual Machines (VM), you may use Vagrant to load it up and then do some checks to ensure it is up and running. When installing the product, you could use ANSIBLE to deploy and configure and then do some verification on some files. Then you can launch some basic Smoke tests using Robot Framework or SOAPUI for API and so on.
This is where XStudio comes into play.

XStudio's ability to launch any kind of tests and to interpret and gather the results back, tremendously facilitates the management of a release Pipeline.

You design your campaigns for each step. Once executed, each test session will provide the tests results. Those are used for decision making on what to do as next step.

You use a third-party CI tool to orchestrate the various campaigns.

XQual's XContinuousIntegration is used by these CI tools to launch the various campaigns and to get the reports and test results back.


XContinuousIntegration provides all detailed reports and add a JUNIT formatted synthesis result file that can be parsed by the various CI tools. The CI tools remains the one to decide how to manage the loop (e.g. if the next step can be started or if the current stage should be stopped).
Whatever test management tool you use, automation is a key factor if you want to support faster delivery cycle.

XStudio supports nearly 90 test automation frameworks and you can add any new one in a matter of hours. But nothing will happen unless you invest in automating the tests.
